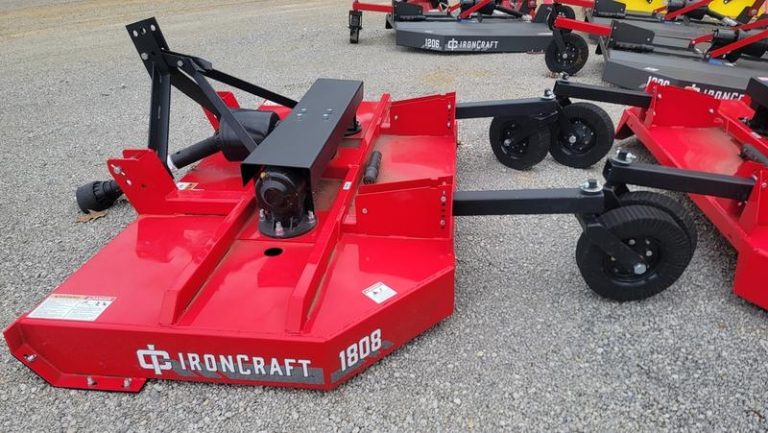

Ironcraft 1808 – 3 Point Hitch – 96″ Heavy Duty Cutter w/o Chains

$7,045.00

SKU: 1808-3PT Category:
Customize Your Hang Tag Prices:

Description

Ironcraft 1808 – 3 Point Hitch – 96″ Heavy Duty Cutter w/o Chains

42 – 52 PTO HP

1800 Series Heavy-Duty Dual Spindle Cutters

These Heavy-Duty Dual Spindle Cutters are designed for heavy-duty applications such as weeds, grass, and brush up to 3” diameter. These cutters are designed to work with 42 or 52 minimum hp tractors, and are available in 94” and 117” widths. The cutter uses dual spindles with two free-swinging blades each, which reduce the shock of impact when a stationary object is contacted. A slip clutch and dual shock couplers protect the gearboxes and drivelines from damage.

Standard equipment includes driveline shields and clutch shields. Front and rear chain discharge shields are available. Available in lift-type and pull-type models.

Product Family 1800 Series
Product 1808
Description 8′ Heavy Duty Dual Spindle Cutter
RPM 540 or 1000
HP Required 42 minimum PTO
Working Width 96″
Transport Width 98″
Weight (lbs) 1250 lbs
Cutting Height 3-1/2″ to 10″
Cutting Capacity 3″
Deck Thickness 10 GA
Side Bands 8″
Skid Shoes Replaceable
PTO Drive Shaft Series 5 w/ slip clutch
Center Driveshaft Shock Coupler Protected
Blade Holder 1/2″ Plate
Gearbox Rating 125 HP
Outboard Gearbox Rating 100 HP
Blades 1/2″ x 3″ Uplift
Wheel Type Laminated
Hub Type Bearing
Hitch Type Lift or Pull
Hitch Cat 1 & 2
Gearbox Warranty 5 year limited
Guarding Options Chains
Cutting Tip Speed 17,100 FPM



Stock Number:1808-3PT
